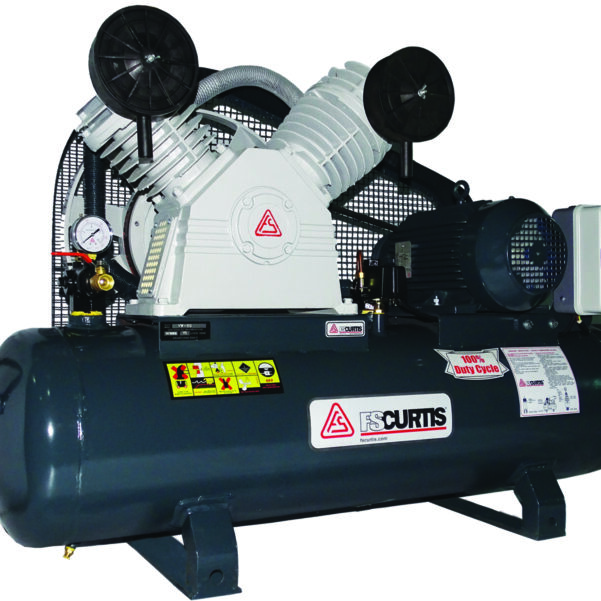

Features W Series
- Food-processing
- Electronics manufacturing
- Medical air for hospital
- Pharmaceutical
- Biochemical
- Petrochemical
- Precision Painting
- Medical air for hospital
- Low speed
- Low power
- Low spares cost
- High availability
- High Efficiency
- Dry crankcase, 100% oil free
Dry compression chamber is always not enough! FS CURTIS total oil free compressor uses dry crankcase design, absolutely no risk of oil residue carried to compression chamber.
- Cooling system
High efficiency cooling fan transmits great amount of heat, better performance results from multi stages of compression, compact streamlined air passages on the cylinder and head enhance cooling effect, 2- stage compression for 7.5HP and above models reduces power consumption and less heat accordingly, the copper tube between stages is fitted with cooling fans to reduce operating temperature effectively
- Low Rotational speed, long service life
Industrial design of compressor ring reduces leakage and results in lower speed and longer life.
- 100% oil free, 100% duty cycle
Oil free compressed air for high quality demand
- Bearings
High precision grease bearings. High temperature-resistant grease ensures long service life and constant operation.
- Compression rings and guide rings
High precision machining along with self material that resists wear and high temperatures. Stainless steel’s, elastic structure enhances the sealing effect and durability.
- Intake Valve
A corrosion-free leaf leaf valve made of stainless steel coated with high temperature–resistant material effectively reduces noise and improves service life. 100% duty cycle is assured.
- Connecting Rod
- Piston
Casting with compact ingredient, precise machining followed by grinding. Surface coating with self material.
- Ventilation of crankcase
