ECO-Turbo
185-250kW AIR COOLED/WATER COOLED CENTRIFUGAL AIR COMPRESSOR
With the ECO-Turbo, expert experience in centrifugal design and manufacturing for the highest efficiencies meets the simplified design for ease of ownership.
Description
Effortless Operation, Highly Efficient
The ECO-Turbo series combines decades of engineering experience from FS-Elliott partnered with the trusted and dependable reputation of FS-Curtis to bring the first in the market reliable, efficient, and innovative air-cooled or water-cooled centrifugal compressors.
The turbo compressors of the ECO-Turbo series are suitable for a wide range of applications where 100% oil-free compressed air is required with higher demand ranging from 185 kW to 250 kW drive power at a final compression pressure of up to 125 psi.
The simple and enclosed design of the compressor unit offers high reliability and ensures safe operation even under the most demanding conditions. The FS-Elliott engineered titanium impellers are designed for optimum efficiency and a long life.
ECO-Turbo compressors are easy to install, operate and maintain making them the right choice when air quality is critical for your compressed air application.
Features
Clean, Oil-free Air
- The system supplies 100% oil-free compressed air of Class 0 (according to ISO 8573)
Ease of Maintenance
- Optimized design with wear-free compression principle offers low maintenance and few downtimes.
- Removable enclosure panels allow for easy access to all maintenance components
- Airend designed with horizontally split gearbox for quick installation and easy maintenance
Featured Advantages
Built to the highest levels of dependability, reliability & efficiency
- 100% Oil-Free compressed air of Class 0 rating
- 2-stages of compression
- Long service life
- Low maintenance costs
- IE3 motor and modern control system for minimum energy consumption
- Premium efficiency TEFC (IP54, equivalent to NEMA Premium) motor enclosure
- Wear-free, titanium impeller designed from optimum efficiency
- Sound enclosure with removable panels protects the compressor from harsh environments
Standard Equipment

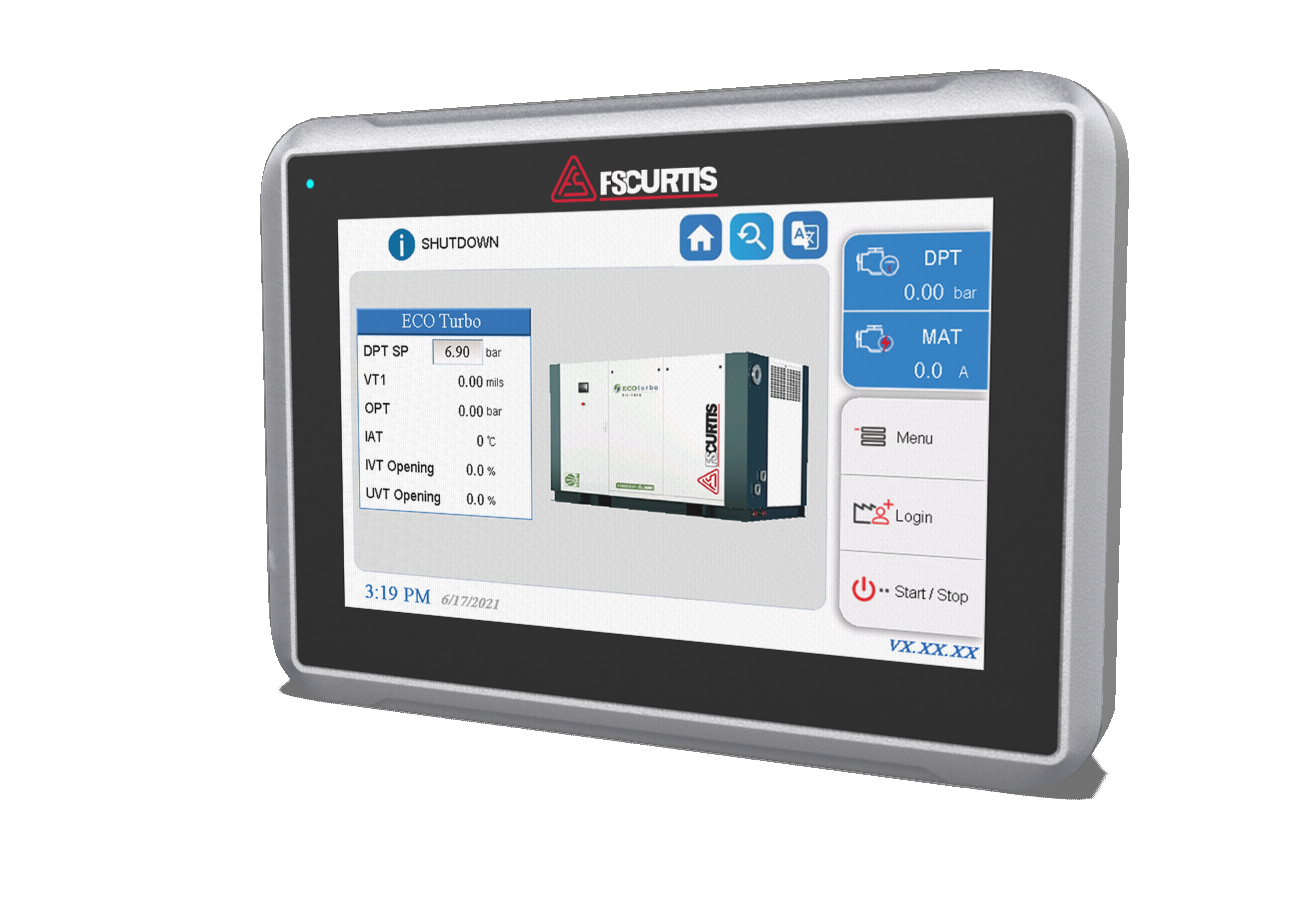

Modern premium control
- Provides 3 energy control modes to optimize energy cost during operation
- Low voltage parts
- Cooling water connection
- Allows for both air and water-cooling option
- Integrated inlet air filter
- Protects aero components with low-pressure drop
- Reduced noise
- High-efficiency coolers
- Compact finned coolers provide excellent heat exchanging performance
- Integrated aftercooler
- Inlet and unloading valve
- Work together in suction throttle mode
- Adjust the flow capacity and discharge pressure
- Ensures oil mist doesn’t contaminate the compressor or environment
